CS-25 is a new generation of camera tracking conference system. It combines the digital technology and internetwork communication into conference room. It is able to work with central controller and fireproofing.
Key features:
Embedded high performance CPU, support camera tracking function
High effect circuit ensure the anti-interference function
With USB recording in WAV format
Multi system can be connected
With S-video and 5 pins connector, to connect simple camera or HD camera, including SONY EVI, EVI HD,PELCO P/D,BRC300 protocol
Built-in 6 in 2 out camera device, maximum 6 simple cameras can be connected
With RS-232 port for HD camera switcher
With RS-232 connect for central controller
System can be set in main controller or via computer, main controller and computer can be connected by TCP/IP or USB.
Meeting mode includes OPEN, FIFO,LIFO,FREE, APPLY, C-ONLY ect
Time off, auto off and voice control can be set

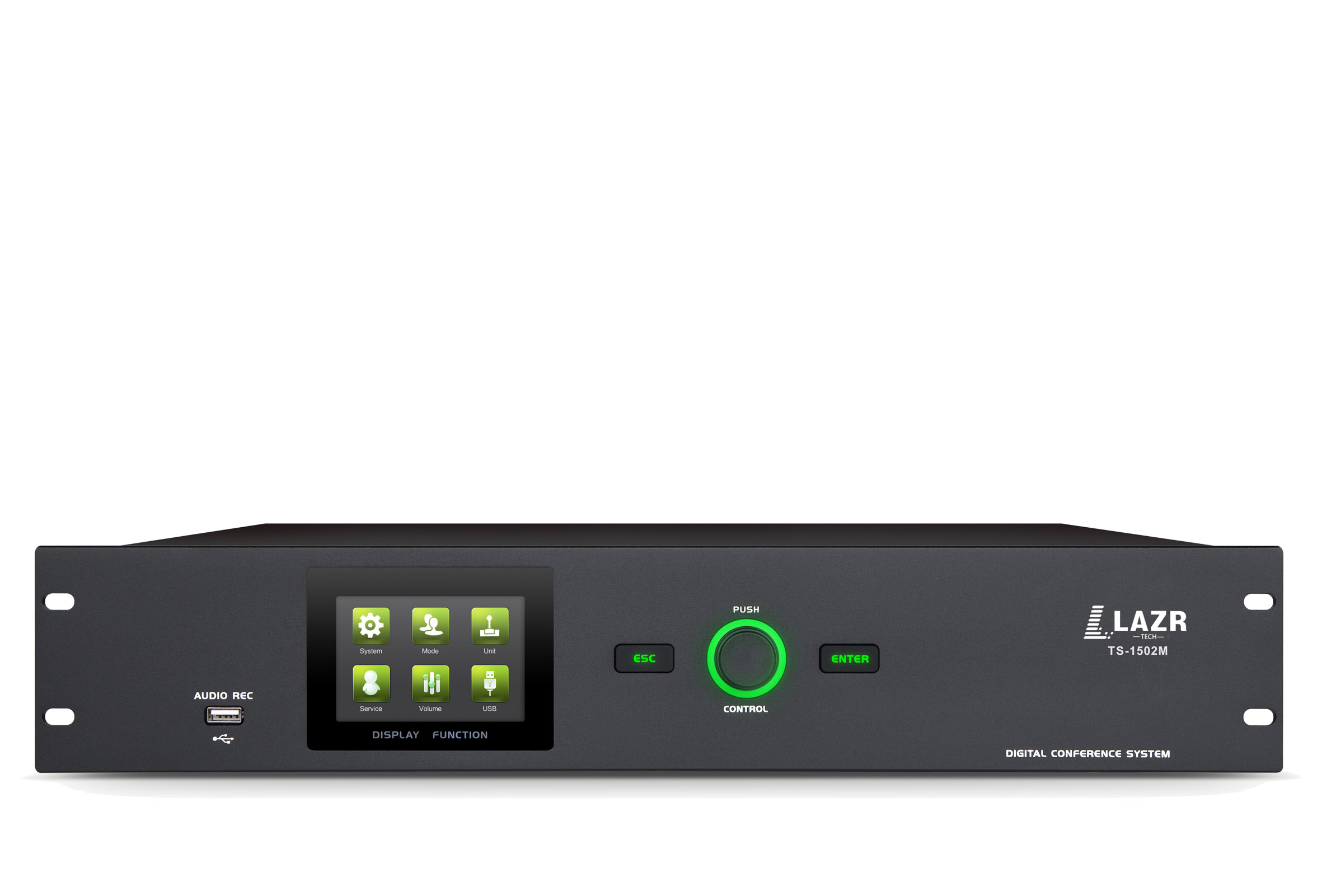

Specification of Main controller
|
Power supply |
AC110V-220V/50Hz |
|
Frequency response |
20Hz-20kHz |
|
S/N ratio |
＞96dBA |
|
T.H.D |
＜0.05% |
|

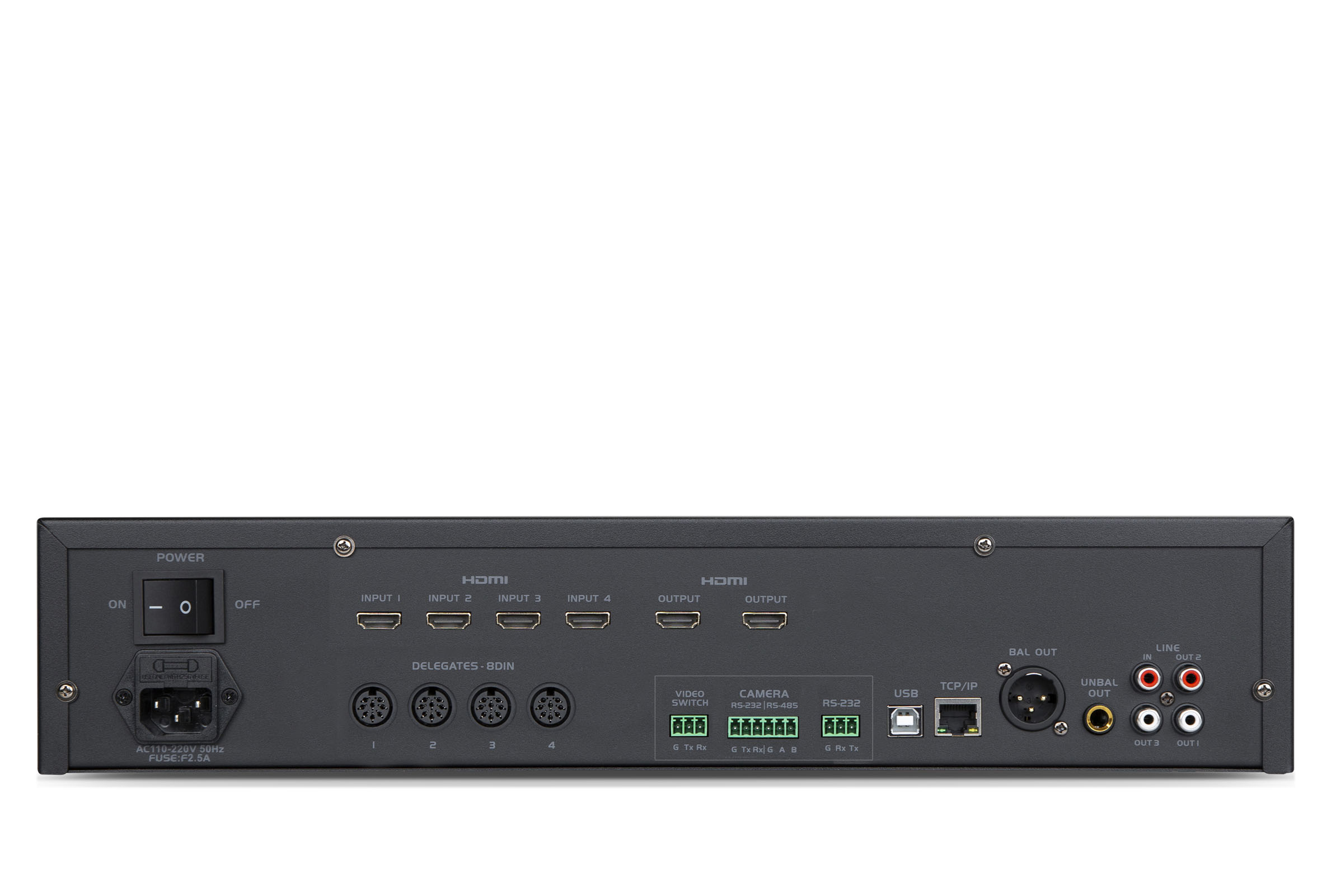

Recording connector |
USB |
|
Input connector |
DIN-8 x4 |
|
Central controller connector |
RS-232 |
|
Camera switch connector |
RS-232 |
|
Computer connecting |
USBx1/ RJ45x1 |
|
Audio input |
RCAx2 6.3mm x1（alarm device） |
|
Audio output |
RCAx2 6.3mm x1 XLR x1 |
|
Size（L×W×H） |
483×323×90mm |

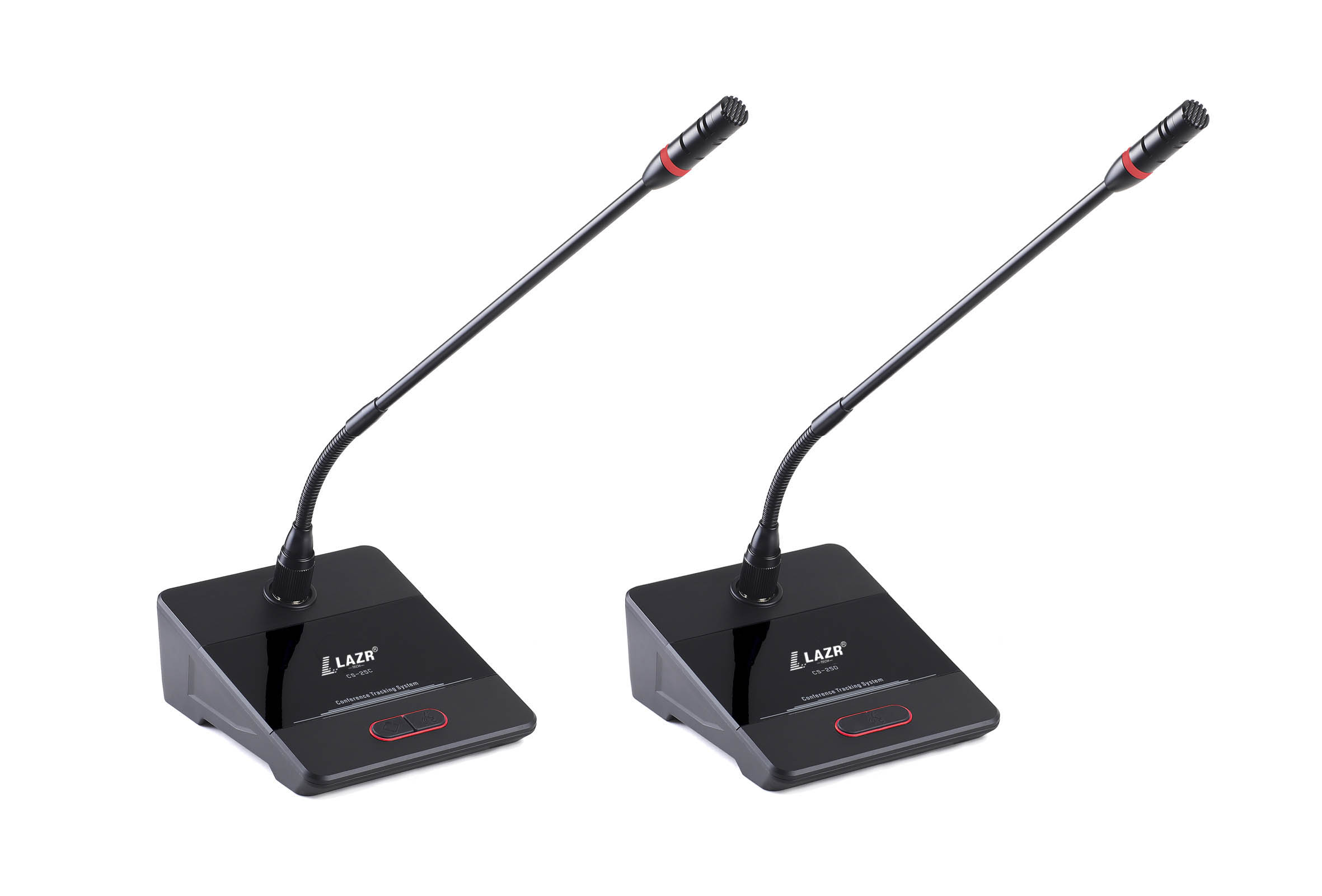

Specification of units
Working Voltage
DC24V
Cable
8P-DIN Type cable
Capsule
Cardioid
Sensitivity
-46 dBV/Pa
Frequency response
20Hz~20KHz
Input impedance
2 kΩ
Directional 0°/180°
> 20 dB (1 kHz)
Equivalent noise
20 dBA (SPL)
SPL
125 dB (THD<3%)
S/N ratio
＞80dB
T.H.D
＜0.05%
Built-in speaker
8Ω 2W
Earphone volume
10 mW
Earphone jack
3.5mm×2
Weight
1.0kg
