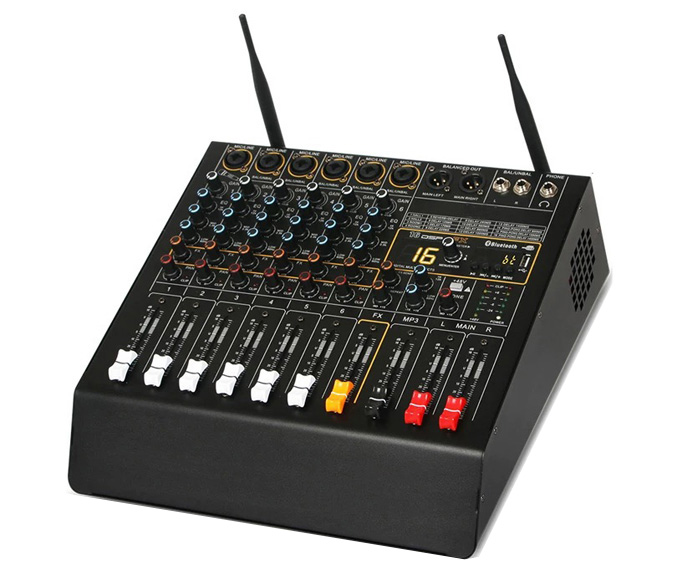

GP-6 Power mixer with wireless mic combine

TECHNICAL SPECIFICATIONS

Maximum levels

Mic Input：30dBu

Line Input：21dBu

All other lnput：22 dBu

Mixer Rated Output

Main outs：+4dBu

All other outs：+4 dBu

Maximum output：22 dBu

Frequency response

Mic lnput to main output

+0,-1 dB,<10Hz to 80kHz

+0,-3 dB,<10Hz to 120kHz

Connection Impedance

Mic lnputs:4.7ohms

Line Inputs：>10k ohms

Outputs：>120 ohms

EQ(each band)±15dB

channel EQ

High:12KHz

Mid ：2.5kHz

Low：80Hz
